Edge Metal / Coping / TalonLock Canted VE
TalonLock
Canted VE
Description

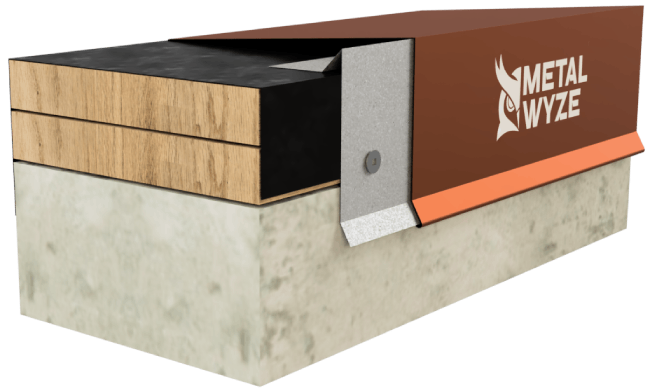

Our TalonLock Canted VE is an economical, and high performing solution for membrane terminations over a parapet wall. The continuous 22ga G-90 canted cleat terminates the membrane through the fascia and acts as a cleat for the front side of the coping while pitching the top of the coping back toward the roof ensuring precipitation does not come over the front of your facade.
The coping is further anchored to the parapet using an exposed fastener with a neoprene washer, that ensures watertightness, through the backside of the coping. This dual fastening approach provided the canted cleat coping with its high performance values.
Technical Specifications | |
|---|---|
Material | Aluminum; Galvalume; Stainless Steel |
Finish | Kynar, Mill |
Cover Thickness | 22ga / 24ga |
Cleat Thickness | 22ga G-90 Galvanized |
Maximum Parapet Width | 24" |
Maximum Face Size | 6" |
Max Length | 26'-00" |
Installation Technique | Concealed Fastened |
Why Choose
This System
Continuous Canted Cleat
The continuous canted cleat provides an unbroken perimeter anchor for the singly ply membrane.
Pitched Coping Top
The cleat design slopes the top of the coping back toward to the roofing assembly to protect the facade of your building.
200+ MPH Windspeed Warranty
Lifetime 200 MPH windspeed warranty. Highest performance of any of our coping assemblies.
Quick Ship Status
Minimal bends on the components, and a 1:1 cleat to cover ratio reduces manufacturing time.
