Edge Metal / Coping / TalonLock Flat VE
TalonLock
Flat VE
Description

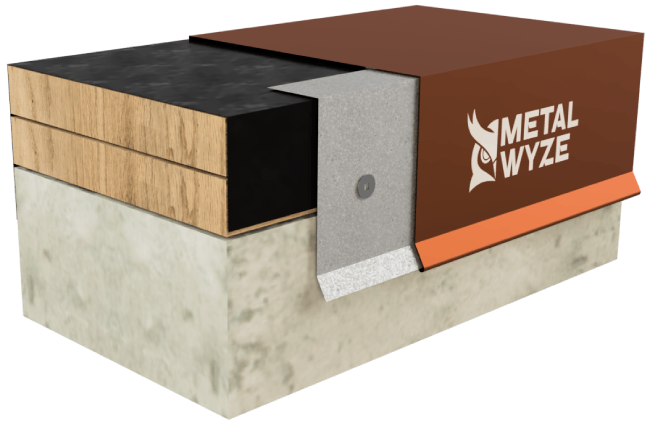

Our Flat VE is an economical, and high performing solution for membrane terminations over a parapet wall. The continuous 22ga G-90 canted cleat terminated the membrane through the fascia, and acts as a cleat for the front side of the coping without pitching the top of the coping back toward the roof. Typically used when Parapets already have a slope to them.
The coping is further anchored to the parapet using an exposed fastener with a neoprene washer, that ensures watertightness, through the backside of the coping. This dual fastening approach provides the continuous cleat coping with its high performance values.
Technical Specifications | |
|---|---|
Material | Aluminum; Galvalume; Stainless Steel |
Finish | Kynar, Mill |
Cover Thickness | 22ga / 24ga |
Cleat Thickness | 22ga G-90 Galvanized |
Maximum Parapet Width | 16" |
Maximum Face Size | 8" |
Max Length | 26'-00" |
Installation Technique | Exposed Fastened |
Why Choose
This System
Continuous Cleat
The continuous cleat provides an unbroken perimeter anchor for the singly ply membrane.
Flat Top Design
The flat top is designed to work in applications where the parapet is already sloped, or no pitch is desired.
200+ MPH Windspeed Warranty
Lifetime 200 MPH windspeed warranty. Highest performance of any of our coping assemblies.
Quick Ship Status
Minimal bends on the components, and a 1:1 cleat to cover ratio reduces manufacturing time.
